Tube Protractor Cut Angle Finder
Use this Tube Protractor to measure out the angle of a cut on a mandrel bent tube. The Tube Protractor can be used as a standalone tool to measure out 5° increments, or it can be used as a jig in combination with a digital protractor (not included) for precision angle measurement.
- This listing is for a single Tube Protractor tool only. The mandrel bent tube and supplemental protractors shown are for reference only and are not included.
- The rotating Arm has hard stops at +/-90° to aid in marking the beginning and end of a bend.
- Index features for marking tube centerlines at the 3, 6, 9, and 12 O’clock positions along the bend.
- Graduated coarse 5° markings on the Tube Protractor Body and Arm. Inch markings on the straight tube sections.
- Index features to aid in using supplemental digital or analog protractors for precision angle measurement.
- The side of the Arm with degree markings is used for marking the cut. The opposite side of the arm has a ledge for supporting a supplemental protractor.

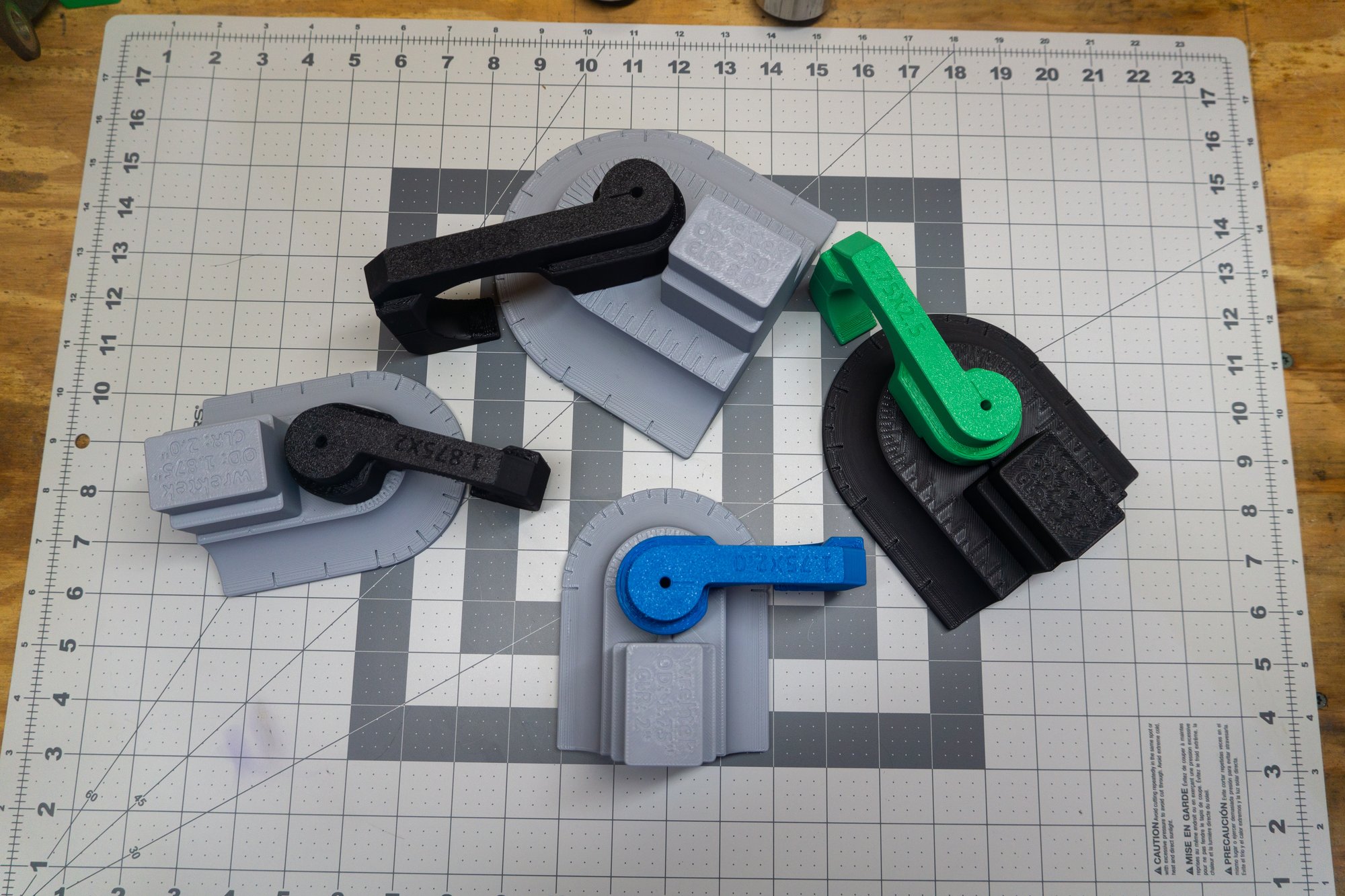

- The pictures show some samples of this item in various sizes. The item colors are assorted and may vary from what is shown.
- This item includes one protractor body and one arm in the selected size.
- Additional sizes that are not listed are available on request.
- Quantity discounts available for sets of 2 or more. Please message for details.
- Please allow up to five business days to ship.
- This tool is 3D printed in the USA with print settings that prioritize strength.
